Talyrond 450
High-precision inspection of roundness and cylindrical geometry for large, heavy or complex parts

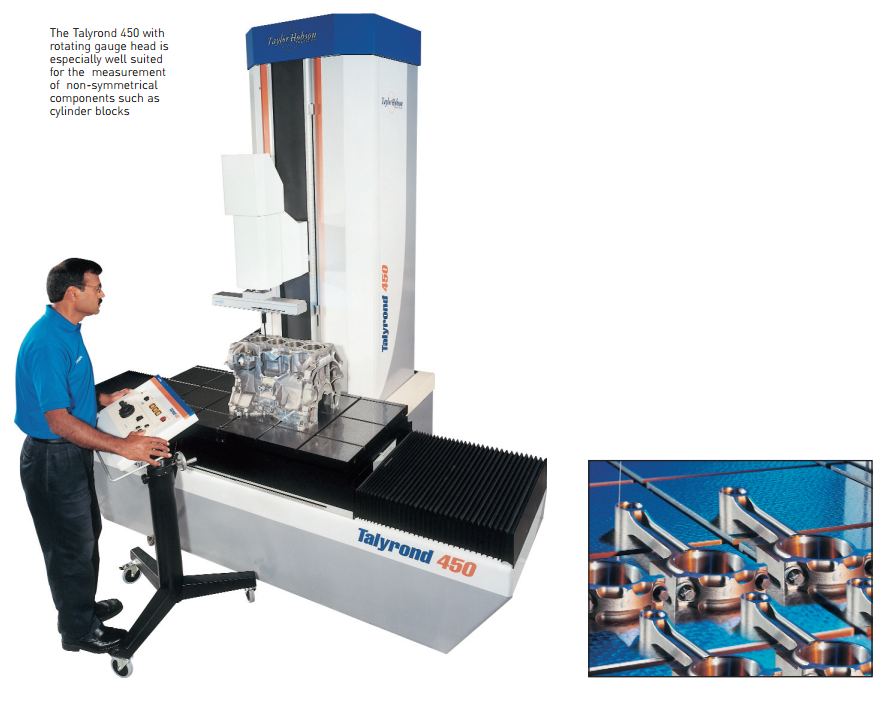

This series of instruments is designed for the power transmission industry and the machine tool industry. The instrument includes a rotating measuring head that can be moved up and down on the column. The use of a rotating measuring head allows the manufacturer to measure the roundness of prismatic or non-rotationally symmetrical parts such as cylinder blocks, crankshafts and cylinder heads.
Solid cast iron bases and columns ensure high-precision spindles and columns for stability and repeatability in measuring roundness, cylindricity and straightness.
The large-scale X, Y workbench features fully automatic centering and leveling to ensure high repeatability of measurements between different operators. The measurement system is fully automated under the control of the Taylor Hampson ULTRA software. This measurement software is powerful enough to meet the requirements of national and international standards.

? Fully automatic centering and leveling
? Large X, Y table with high-precision position control with 1000 kg load capacity
? High load capacity, high precision spindle and dedicated deep hole measuring arm

? Straightness, parallelism and cylindricity are measured up to 1.5m
? Optional column up to 2 meters
? Supported Ultra software for traceability to comprehensive measurements of national and international standards

Talyrond 450 analytical capabilities

RONt	Roundness	CYLc	Cylindricity
STRt	Vertical straightness		Bounce (radial and axial)
FLTt	Flatness		Full bounce (radial and axial)
ECC	Eccentric		Harmonic analysis
SQR	Horizontal straightness, parallelism		Partial arc
CONC	Concentricity		Interrupted surface
COAX	Concentricity（ISO/DIN）		Slope analysis

Industry-leading mechanical performance provides accuracy and stability

● Stable structure The base and post of the TR450 are made of a stress-relieving alloy that has no other material to provide the same high stability and rigidity when measuring and moving loads. Therefore, the TR450's cylindricity accuracy is the highest in its class.	● Powerful Ultra Roundness Measurement Software Ultra software provides powerful analysis and automatic measurement capabilities for the TR450. Ultra is an ideal tool when it comes to measuring workpieces quickly.
● Stress relief Taylor Hobson uses two methods of stress relief, one after casting and the other before finishing. This ensures that the cast iron elements are incorporated into the upper structure of the instrument, maintaining a stable size and geometry.
● Three-point kinematics leveling structure In the manufacturing industry, a surface is usually supported by three points. Taylor Hobson uses a fixed point and two other movable methods to level the workpiece. The TR450 uses this leveling method.
● Precise position control We can program to control or correct the axial movement so that the operator can avoid errors. Precision linear sensors ensure accurate positioning.
