All the features professionals need to pinpoint hot spots and troubleshoot potential problems.

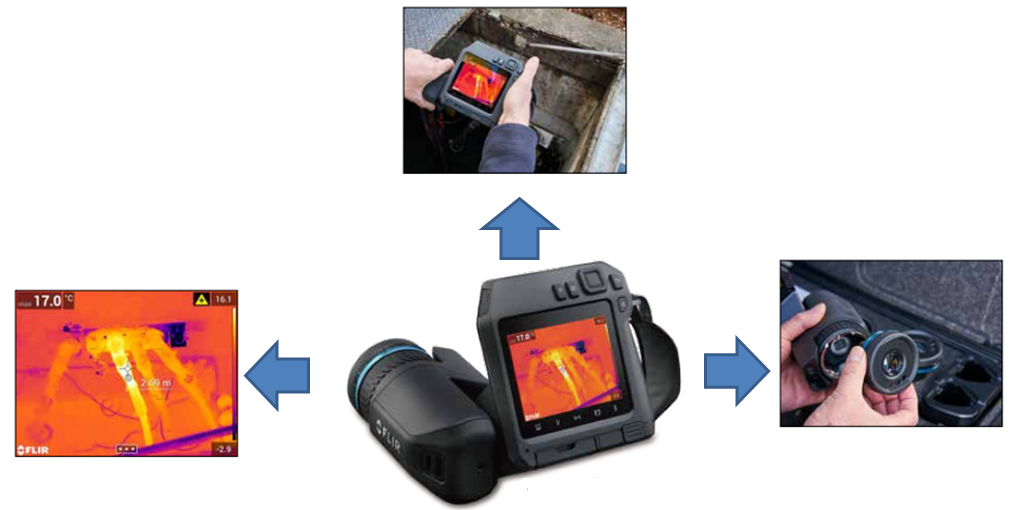

The FLIR T530 / T540 thermal imaging camera is equipped with a 180 ° rotating lens platform and a bright 4-inch LCD screen.
Helps users diagnose hard-to-reach parts in any environment. Built-in advanced measurement tools
With powerful laser-assisted autofocus and industry-first image quality,
Make sure you can find and diagnose problems faster.

Comfortable and efficient with outstanding performance
*Make key decisions faster* Laser-assisted autofocus ensures that you get a clear focus so you can measure the precise temperature readings needed to make fast and reliable decisions.	*Flexible operation and ergonomic* The FLIR T530 uses a condenser that rotates 180 °, so you can comfortably and easily image your target at any angle throughout the day.	*Intuitive user interface* The capacitive touch screen has an intuitive, easy-to-navigate menu; in addition, you can customize it with two programmable buttons.

Key features
? 180 ° swivel condenser and vivid 4-inch scratch-resistant capacitive touch screen
? IR resolution up to 464 × 348 pixels (161,472 measurement points)
? Fast and accurate laser-assisted autofocus
? Laser distance measurement and area measurement displayed on the screen
? Customizable working folder
? Smart, interchangeable AutoCal lens with automatic calibration
? Industry-leading 2-10 years warranty service

Make key decisions faster
Advanced imaging technology and outstanding sensitivity help you make the right decisions quickly
? With FLIR Vision Processing technology supported by powerful MSX, UltraMax? And adaptive filtering algorithm, ensure that the generated thermal image has industry-leading sharpness
? Enable the laser distance measurement function on the screen through the touch button to determine the accessibility of the parts to be repaired
? Thanks to a 4-inch scratch-resistant LCD screen that is 33% brighter and has 4 times higher resolution than comparable thermal cameras, this camera helps to easily identify problems and make quick decisions

Maximize Efficiency, Safety, and Performance
Evaluate equipment safely and comfortably from a convenient vantage point to prevent component failure
? Using a condensing device that can rotate 180 ° to comfortably image high and low targets, which can effectively reduce the burden of all-day detection
? Can scan large areas from a safe distance with a resolution of up to 464 × 348 pixels, and provides 161,472 non-contact temperature measurement points
? Thanks to AutoCal optics with auto-calibration function, this camera can share lenses with all series of cameras (from wide-angle to telephoto lens)
? With laser-guided auto-focus function to ensure clear infrared images and accurate temperature readings every time

Designed to make work easier
Quick reporting features help you organize results in the field and maximize your productivity
? Quick access to menus, folders and settings with intuitive controls including a responsive touch screen and two programmable buttons
? Enable customers to observe key results in real time through the Wi-Fi streaming function of the FLIR Tools app
? Optimize your workflow with smooth reporting features (such as built-in voice annotations, text annotations with auto-fill and sketches)
? Make accurate and precise files with embedded GPS position data and measurement data from FLIR digital clamp meters and multimeters that support the METERLiNK connection function

FLIR T500 series technical parameters

Display more
Thermal imager characteristics	T530	T540
Infrared resolution	320 x 240（76,800 pixels）	464 x 348（161,472 pixels）
UltraMax resolution	307,200 effective pixels	16,888 effective pixels
Object temperature range	-20 ° C to 120 ° C 0 ° C to 650 ° C 300 ° C to 1200 ° C	-20°C to 120°C 0°C to 650°C 300°C to 1200°C
Digital zoom	1-4x continuous zoom	1-6x continuous zoom
Panorama image mode	Not support	Support

Common characteristics
Detector Type and Pixel Spacing	Uncooled Infrared Detector, 17 μm
Thermal sensitivity / NETD	<30 mK @ 30 ° C (42 ° lens)
Wavelength range	7.5 - 14.0 μm
Image frequency	30 Hz
Programmable button	2 個
Imaging and optical parameters
Shot recognition	Automatic
Aperture	f / 1.1 (42 ° lens), f / 1.3 (24 ° lens), f / 1.5 (14 ° lens)
Focusing	Continuous, single shot laser rangefinder (LDM), single shot comparison, manual
Minimum focal length of thermal image	42 ° lens: 0.3 m (0.65 m with MSX) 24 ° lens: 0.5 m; macro mode optional 14 ° lens: 1.0 m
Image display and mode
Display	4-inch, 640 x 480 pixel LCD touch screen with auto-rotation
Digital camera	5 million pixels, built-in LED photo / video light
Color palette	Iron red, gray, iridescent, aurora, lava, high-contrast iridescent
Picture mode	Infrared image, visible light image, MSX, picture-in-picture
Measurement and analysis
Accuracy	± 2 ° C (± 3.6 ° F) or ± 2% of reading
Spot temperature measurement area	3 each in real-time mode
Measurement preset	No measurement, center point, hot spot, cold spot, user preset value 1, user preset value 2
Laser pointer	Support
Laser rangefinder	Support; dedicated buttons
Comment
Voice	60-second voice recording annotation for still images or videos via built-in microphone (with speakers) or Bluetooth
Text	Pre-defined list or touch screen keyboard
Sketch	From the touch screen (only supported for infrared images)
Distance and area measurement	Supported; calculates area in measurement box in m2 or ft2
METERLiNK	Support
Image storage
Storage media	Removable SD card
Image format	Standard JPEG with measurement data
Time-lapse shooting (infrared)	10 seconds to 24 hours
Video recording and transmission
Radiation infrared video recording	Real-time infrared video recording (.csq)
Non-radiative infrared or visible light video	Save to H.264 format to memory card
Radiation infrared video transmission	Support, via UVC or WiFi
Non-radiative infrared video transmission	H.264 or MPEG-4 transmission via WiFi MJPEG transmission via UVC or WiFi
Communication Interface	USB 2.0, Bluetooth, WiFi
Video output	Connect the monitor port by USB-C
Other data
Type of battery	Li-ion battery, direct or dock
Battery continuous working time	25 ° C ambient temperature and about 4 hours for general use
Range of working temperature	-15°C to 50°C
Storage temperature range	-40°C to 70°C
Shock / Vibration / Encapsulation; Safety	25 g / IEC 60068-2-27，2 g / IEC 60068-2-6 / IP 54；EN/UL/CSA/PSE 60950-1
Weight / size (without lens)	1.3 kg，YYY x YYY x YYY mm
The standard configuration
Package	Infrared camera with lens, 2 batteries, charger, hand strap, hard carrying case, strap, front lens cap, rear lens cap, power supply, print document, SD card (8 GB), cable (USB 2.0 A to USB-C, USB-C to HDMI, USB-C to USB C)
